18.5kW Enclosed Soft Start
Generally a stocked item but please contact us for availibility on + 44 (0)1686 688948
18.5kW, 400V Three Phase Input, 400V Three Phase Output Enclosed Soft Start Drive.

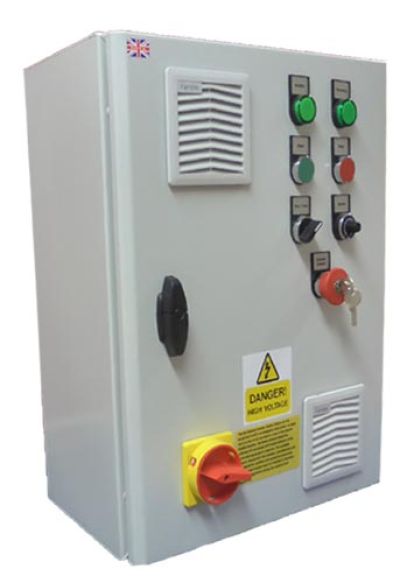

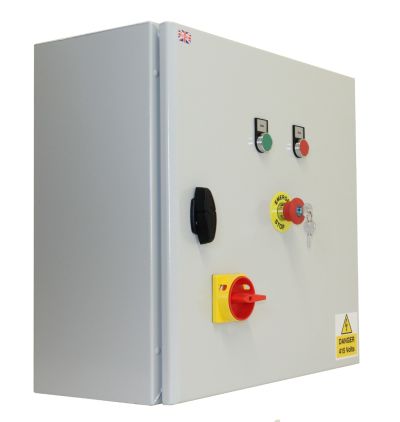

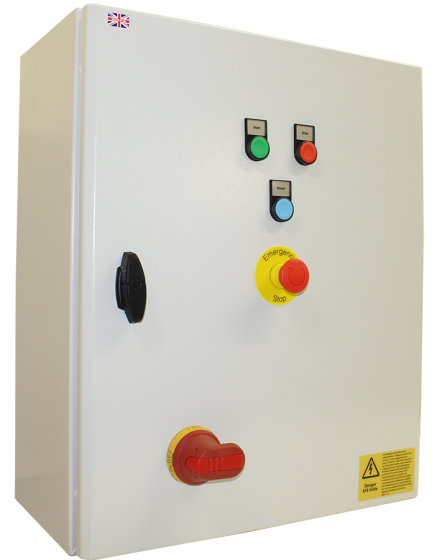

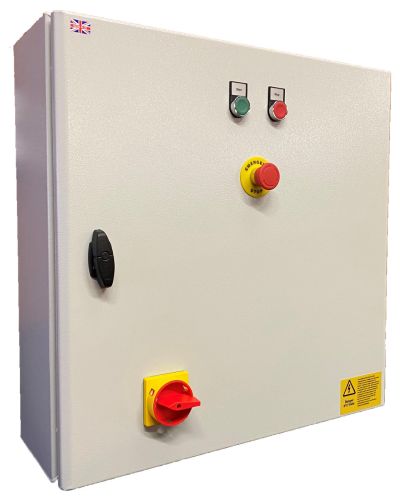

600mm x 500mm x 250mm Powder coated steel enclosure contains the following:
- Door Interlocked Isolator
- MCB Protection (Control)
- Fuse Holder fitted with aM Fuses
- Isolation Contactor
- 3 Phase 18.5kW Schneider Soft Start (with thermal overload protection)
- Green Start Pushbutton
- Red Stop Pushbutton
- Blue Reset Pushbutton
- Emergency Stop Pushbutton
- Set of Terminals for Motor Connections
- Drawings Supplied
- Tri rated cable
- IP 65 rating
- Trip Class 10
Supply required: 415VAC + N + E
Availability – Generally a stocked item but please contact us for availability
When the E-stop is pressed, it will remove power from the soft start.
When start button is pressed (providing the E Stop button is not pressed), the soft start will enable and run the motor up to speed.
When stop button is pressed, the soft start will either disable or ramp to a stop depending on the setting of the soft starter.
Enclosed Soft Start Trip Class
The MCW Enclosed soft starters ranging from 0.75kW to 15kW come equipped with a standard Trip Class 10 motor breaker, ideal for most light to medium industrial loads. Upon request, they can be upgraded to Trip Class 20, suitable for medium to heavy industrial loads. For this conversion, a larger soft start unit, a Trip Class 20 thermal overload, and a bigger MCB/MCCB will be provided. It's important to note that on certain models, the enclosure size might need to be increased. For further details, feel free to consult with one of our team members.
Trip Class by Application Chart
The MCW Enclosed Soft Starter range is not recommended for applications with extremely heavy starting loads exceeding 20 seconds or for handling very high inertia loads like high inertia fans, centrifuges, or loaded crushers. To address specific application needs, we encourage you to reach out to one of our team members for a tailored discussion.
It's important to note that initiating the MCW Enclosed Soft Starters more frequently than once every 10 minutes will adjust the thermal overload tripping behavior, causing quicker overload trips for a given thermal overload current setting.
Trip Class Explained
At 600% of the maximum current rating of the motor the Trip Class 10 unit will trip in 10 seconds or less, Trip Class 20 will trip in 20 seconds or less, and Trip Class 30 will trip in 30 seconds or less.
Standard model generally kept in stock.
Please call ahead for lead times regarding options and modifications (such as addition of fwd/rev switch, addition of speed potentiometer etc)
If this isn't what you were looking for, we also make custom control panels to meet any requirements. Give us a call on +44 (0)1686 688948 or email us at enquiries@motorcontrolwarehouse.co.uk
