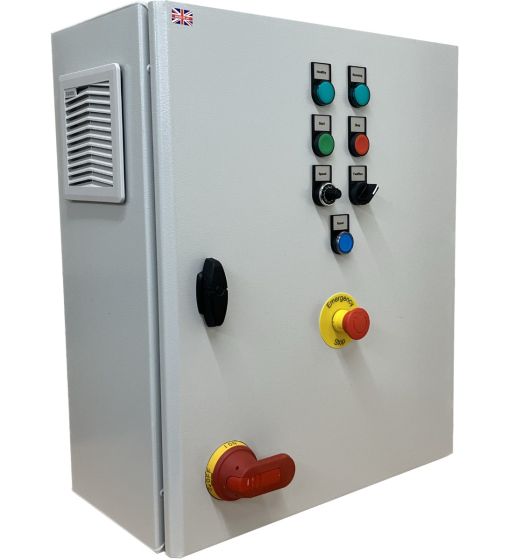

2.2kW 400V 3 Phase Enclosed C300

Model Number
CIB0220EN400V
Generally a stocked item but please contact us for availability on + 44 (0)1686 688948
More Information
£1,856.87 £1,547.39

Features

  • Robust steel enclosure
  • 2.2kW C300 industrial inverter
  • Interlocked isolator
  • 10kA MCBs
  • Tri rated cable
  • Keyed Inverter Disable button
  • IP rated speed pot
  • Motor connections to terminals
  • Fwd/Rev switch
  • Stop/Start buttons
  • Indication lamps
  • Thermostat controlled cooling

The enclosed C300s come with MCBs for power and control. Once installed, they are ready to control a three phase motor with precise speed control, soft start and soft stop and potential energy saving.

Please call ahead for lead times regarding options and modifications (such as fan and vent covers in panel sides, removal of fwd/rev switch, etc)

Power kW 2.2kW
Encl Rating IP54
Power HP 3.0
Input Voltage 400VAC +/-10%
Width 500mm
Material Steel
Onboard EMC Filter Class C3
Input Current 10A
Depth 250mm
Model Number CIB0220EN400V
Overload 150%
Motor Current 5.6A
Weight 25.000000
Inverter Type C300-03400056
MCB Break Capacity 10kA
