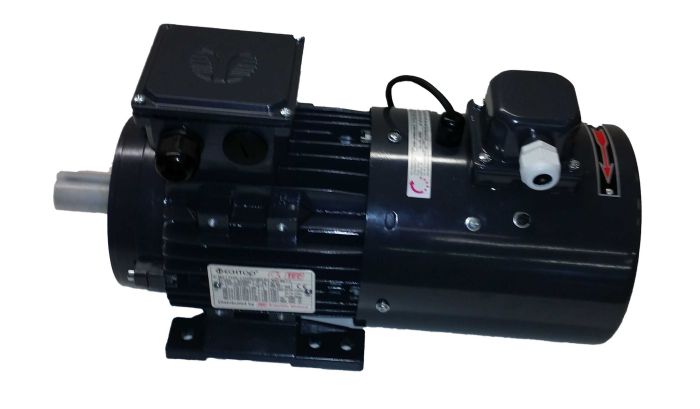

3 Phase Encoder Motor, 1.1kW, 2 Pole with Force Vent Fan

TECA3, IE3, 3 phase, 1.1kW, 2 pole, 80 frame encoder motor with force vent fan

£981.66 £818.05

TECA3, aluminium, 3 phase, 1.1kW, 2 pole, 80 frame IE3 motor fitted with a 5-30V incremental encoder and force vent fan

Encoder connection via 2m screened cable

Please allow 10-15 working days from order to despatch

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

Power kW 1.1

Power HP 1.5

Input Phases 3

Poles 2

Slip Speed 2840rpm

Frame Size 80

Model No TECA3 1.1-2-Enc-FVK

Frame Material Aluminium

Shaft Diameter 19mm

Current 200V 4.8Amps

Current 400V 2.5Amps

Weight 14.000000

Width 160mm

Depth 377mm

Height 231mm

Input Volts Delta 200V

Input Volts Star 400V

Encl Rating IP55

Efficiency IE3 Motor

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE
