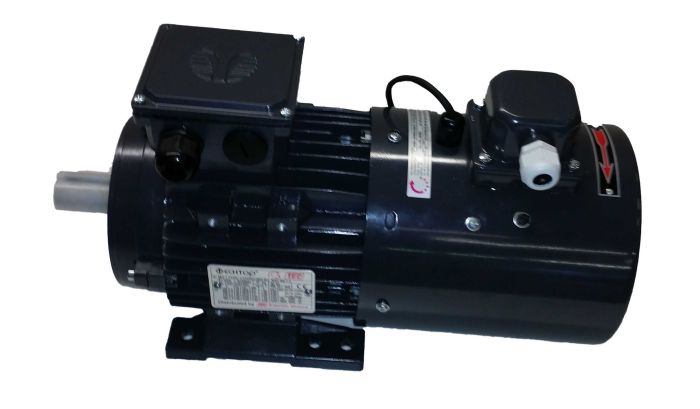

3 Phase Encoder Motor, 15kW, 6 Pole with Force Vent Fan
TECC3, IE3, 3 phase, 15kW, 6 pole, 180L frame encoder motor with force vent fan
£2,344.26
£1,953.55
TECC3, Cast Iron, 3 phase, 15kW, 6 pole, 180L frame IE3 motor fitted with a 5-30V incremental encoder and 400V 3 phase force vent fan
Encoder connection via 2m screened cable
Please allow 10-15 working days from order to despatch
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
Forcevent Dimensions 2014-MCW.~PDF (4.81 MB)
Power kW
15
Power HP
20
Input Phases
3
Poles
6
Slip Speed
960rpm
Frame Size
180L
Model No
TECC3-15-6-Enc-FVK
Frame Material
Cast Iron
Shaft Diameter
42mm
Current 200V
N/A
Current 400V
28.4Amps
Weight
137.000000
Width
368mm
Depth
789mm
Height
440mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP55
Efficiency
IE3 Motor
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
