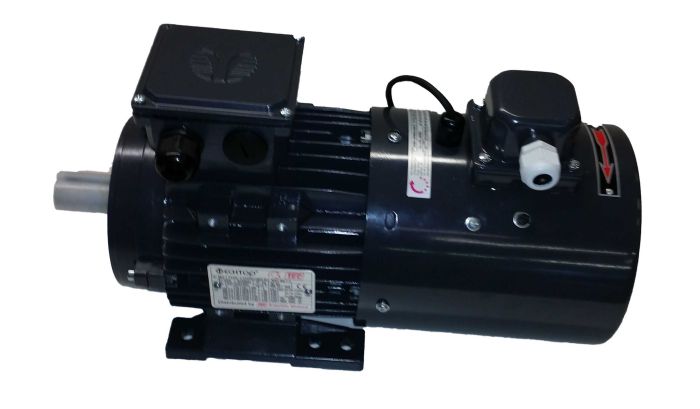

3 Phase Encoder Motor, 22kW, 4 Pole with Force Vent Fan

TECC3, IE3, 3 phase, 22kW, 4 pole, 180L frame encoder motor with force vent fan

£2,344.26 £1,953.55

TECC3, Cast iron, 3 phase, 22kW, 4 pole, 180L frame IE3 motor fitted with a 5-30V incremental encoder and 400V 3 phase force vent fan

Encoder connection via 2m screened cable

Please allow 10-15 working days from order to despatch

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

Power kW 22

Power HP 30

Input Phases 3

Poles 4

Slip Speed 1410rpm

Frame Size 180L

Model No TECC3-22-4-Enc-FVK

Frame Material Cast Iron

Shaft Diameter 48mm

Current 200V N/A

Current 400V 40.3Amps

Weight 154.000000

Width 340mm

Depth 838mm

Height 440mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency IE3 Motor

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE
