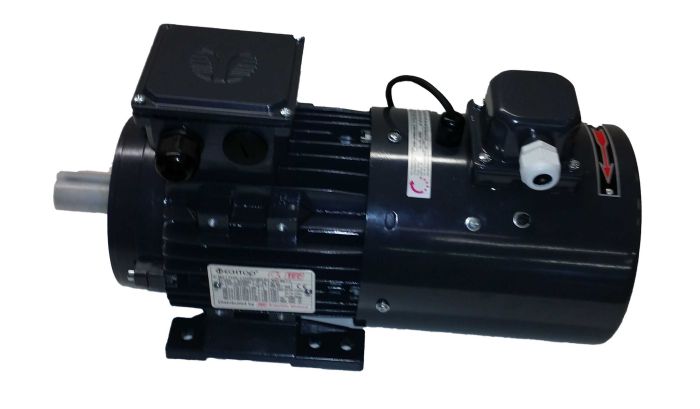

3 Phase Encoder Motor, 4kW, 2 Pole with Force Vent Fan

TECA3, IE3, 3 phase, 4kW, 2 pole, 112 frame encoder motor with force vent fan

£1,183.56 £986.30

TECA3, aluminium, 3 phase, 4kW, 2 pole, 112 frame IE3 motor fitted with a 5-30V incremental encoder and force vent fan

Encoder connection via 2m screened cable

Please allow 10-15 working days from order to despatch

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

Power kW 4.0

Power HP 5.5

Input Phases 3

Poles 2

Slip Speed 2850rpm

Frame Size 112M

Model No TECA3-4.0-2-Enc-FVK

Frame Material Aluminium

Shaft Diameter 28mm

Current 200V N/A

Current 400V 8.23Amps

Weight 35.000000

Width 220mm

Depth 484mm

Height 279mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency IE3 Motor

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE
