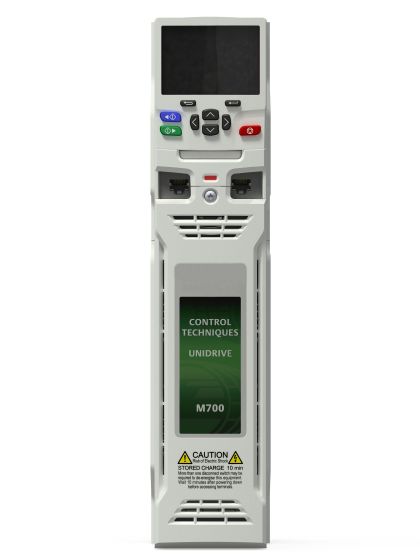

Control Techniques Unidrive M701-04400150 A101 - Service Ex

Control Techniques Unidrive M701-04400150, 400V 3 phase input, 400V 3 phase output, 5.5kW, 15A, IP20.

£1,119.36 £932.80

This inverter has been used once for testing purposes.The box has been opened. It has been tested and is in good working order. This product carries one months warranty from date of purchase.

Control Techniques Unidrive M701-04400150, 400V 3 phase input, 400V 3 phase output, 5.5kW, 15A, IP20.

The Unidrive M701 is the Unidrive SP replacement with on-board RS485.

The Unidrive M701 provides high performance motor control and ultimate control flexibility to satisfy the most demanding high specification industrial applications.

Also available:

M700 Ethernet - On-board

M702 Safety Enhanced - 2 x Safe Torque Off inputs plus on-board real time Ethernet

Below is a link to the Control Techniques website and Unidrive M700 section.

http://acim.nidec.com/drives/control-techniques/products/ac-drives/unidrive-m/unidrive-m700

NOTE:

The Unidrive M701 does not come with a keypad as standard. If you require a keypad, please select from the drop down box.

Power kW 5.5

Power HP 10

Input Voltage 415V

Output Voltage 0 to input

Input Phases 3

Output Phases 3

Output Current 15A

Input Current 19A

Encl Rating IP20

Width 124mm

Height 391mm

Depth 200mm

Frame Size 4

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 6.500000

Control Type V/f, Open loop vector, RFC-A, RFC-S, closed loop IM, closed loop servo

Input Freq 48-62Hz

Output Freq 0-550Hz

Max Temp 40 deg C

Digital Inputs 4 plus 3 x programmable I/O

Digital Outputs 1

Analogue I/Ps 3

Analogue O/Ps 2

Output relay(s) 1

Serial Comms RS485

Approvals CE, UL
