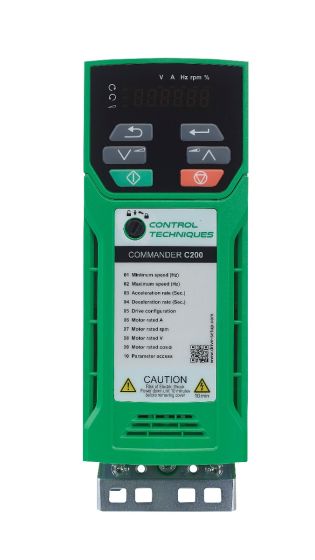

CT Commander C200-02200075 1.5kW 230V Control Techniques Commandr C200-02200075 , 230V single or 230V 3 phase input, 230V 3 phase output, 1.5kW, 7.5A, IP20.
More Information Control Techniques Commander C200-02200075 , 230V single or 230V 3 phase input, 230V 3 phase output, 1.5kW, 7.5A, IP20
For automation processes like conveyors, fans, pumps and mixers, Commander C200 offers extremely quick setup and installation.
The C200 has one parameter that automatically changes the control terminals to satisfy most simple applications.
Below is a link to the Control Techniques website and
https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives
Commander C 5 Year Warranty
By submitting the form, using the link below, your Commander C manufacturer’s warranty will be extended to 5 years as long as the drive is registered within six (6) months of the date of purchase (Terms & Conditions apply).
https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives/5-year-warranty
Power kW
1.5
Power HP
2
Input Voltage
240V
Output Voltage
0 to input
Input Phases
1 or 3
Output Phases
3
Output Current
7.5A
Input Current
18.1A / 9.1A
Encl Rating
IP20
Width
75mm
Height
205mm
Depth
150mm
Frame Size
2
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
1.000000
Control Type
V/f, Open loop vector & RFC-A
Input Freq
48-62Hz
Output Freq
0-550Hz
Max Temp
40 deg C
Digital Inputs
4
Digital Outputs
1
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
1
Serial Comms
With option module
Approvals
CE, UL
