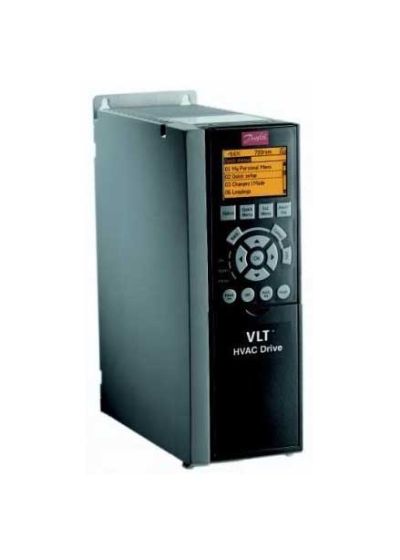

Danfoss FC102 IP20 7.5kW 400V 3 phase AC Inverter Drive C3 EMC
The Danfoss FC102 Inverter Drive is designed specifically to control the speed of fan and pump motors.
Danfoss FC-102 AC Inverter for 7.5kW (10HP) 400V 3 Phase Fan / Pump control. This is an IP20 (cabinet mount inverter).
Long Part Number
FC-102P7K5T4E20H3XGXXXXSXXXXAXBXCXXXXDX
Short Part Number
FC102 131B5474
Features at a glance for the FC102 Inverter
There’s no need for external cooling or oversizing as the maximum ambient temperature is 50°C without derating
PLC capacity is often unnecessary thanks to the Smart Logic Controller
A low initial investment and easy upgrades are possible thanks to the modular concept with a wide range of options
The need for external control and conversion equipment is avoided due to integrated pump, fan and compressor functionality
5–15% energy is saved as a result of the Automatic Energy Optimization function
Less gateway solutions are needed thanks to a wide range of HVAC protocols for building management system controller connectivity
