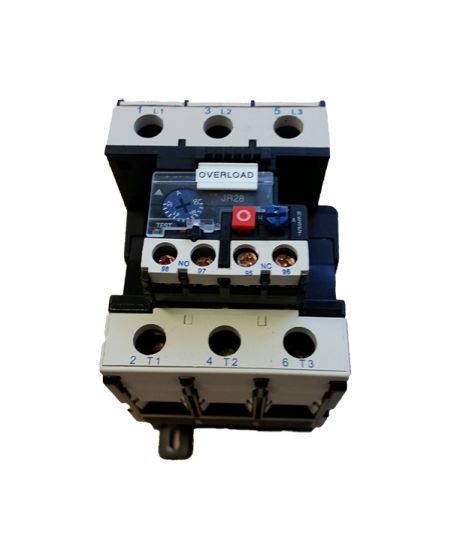

Motor Overload JR28-25 1312 5.5-8A, with Base
A range of motor thermal overloads with mounting bases covering the current range from 4 Amp to 104 Amps.
More Information
£11.70
£9.75
A motor thermal overload with mounting base covering the current range from 5.5 Amp to 8 Amps. These motor overloads are stand alone devices and can be din rail mounted. They have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.
Related Download 1 JR28 Thermal Overload Data
Related Download 2 JR28 Overload Dimensions
Trip Class
10
Input Voltage
415V
Output Voltage
415V
Input Phases
3
Output Phases
3
Overload
5.5 to 8 Amp range
Frame Size
1312
Width
45mm
Height
80mm
Depth
82mm
Weight
1.000000
Approvals
CE
Model No
JR28-25 1312 5.5-8
Mounting Type
Din Rail
Frame Material
Plastic
Poles
3
