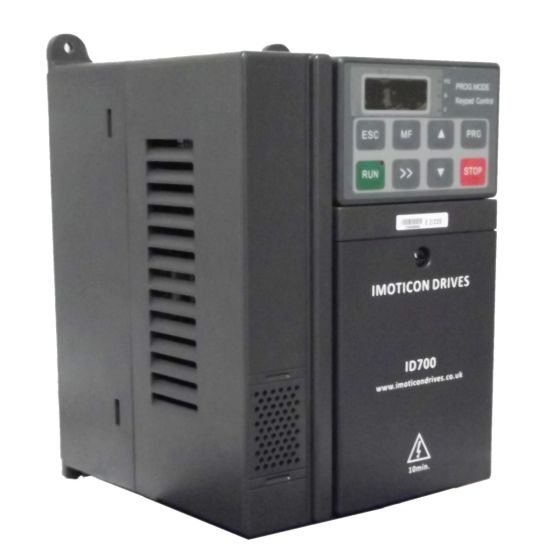

Imoticon ID700-40T00220 2.2kW Inverter
Imoticon, ID700-40T00220, 2.2kW, ID700, Imoticon inverter, AC inverter drive, 400V three phase input, 400V three phase output
£241.74
£201.45
Imoticon ID700-40T00200 Inverter drive. 400V three phase input, 400V three phase output. Cost effective, easy to use inverter. Has just 20 default parameters to make simple and easy to use, but there are several more if you would like it to be more advanced.
Here is a link to the Imoticon website: https://www.imoticondrives.co.uk
Power kW
2.2
Power HP
3.0
Input Voltage
380-480V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
5.8Amps
Input Current
8.3Amps
Encl Rating
IP20
Width
142.2mm
Height
220.4mm
Depth
155.5mm
Frame Size
B
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
2.200000
Control Type
V/f and Open loop vector
Input Freq
48 - 62Hz
Output Freq
0-300Hz
Max Temp
40 Deg C
Digital Inputs
7
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
2
Serial Comms
Modbus RTU
Approvals
CE, UL
