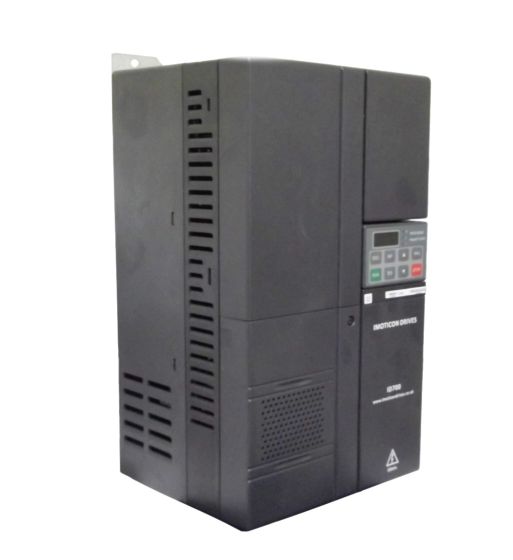

Imoticon ID700-40T01850 18.5kW Inverter
Imoticon, D700-40T01850, 18.5kW, ID700, Imoticon inverter, AC inverter drive, 400V three phase input, 400V three phase output.
£881.64
£734.70
Imoticon ID700-40T01850 Inverter drive. 400V three phase input, 400V three phase output. Cost effective, easy to use inverter. Has just 20 default parameters to make simple and easy to use, but there are several more if you would like it to be more advanced.
Here is a link to the Imoticon website: https://www.imoticondrives.co.uk
Power kW
18.5
Power HP
25
Input Voltage
380-480V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
38Amps
Input Current
36Amps
Encl Rating
IP20
Width
238.5mm
Height
435.5mm
Depth
200.3mm
Frame Size
E
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
12.100000
Control Type
V/f and Open loop vector
Input Freq
48 - 62Hz
Output Freq
0-300Hz
Max Temp
40 Deg C
Digital Inputs
7
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
2
Serial Comms
Modbus RTU
Approvals
CE, UL
