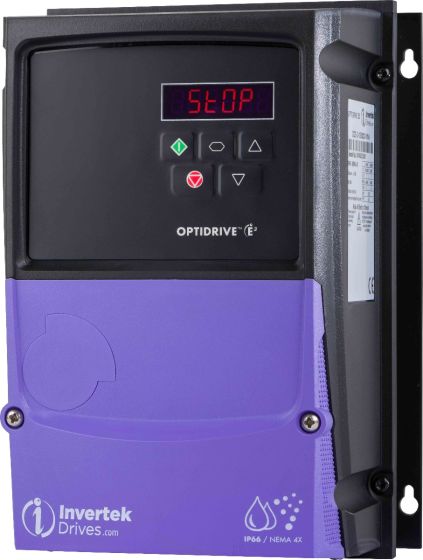

Invertek ODE-3-110023-101A Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-110023-101A, 110V single (1) phase input, 230V three (3) phase output (Voltage Doubler), 0.37kW, 2.3A output, IP66 Non-switched. No internal EMC filter.

More Information

£248.64 £207.20

Details

Invertek Optidrive E3, ODE-3-110023-101A, 110V single (1) phase input, 230V three (3) phase output (Voltage Doubler), 0.37kW, 2.3A output, IP66 Non-switched. No internal EMC filter.

Ideal for wall mounting in damp and dusty environments. Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please contact us for availability.

Downloads

Power kW 0.37kW

Power HP 0.5HP

Input Voltage 110V

Output Voltage 0 to 240V

Input Phases 1

Output Phases 3

Output Current 2.3 Amps

Input Current 7.8 Amps

Encl Rating IP66 Non-Switched

Width 161mm

Height 232mm

Depth 155mm

Frame Size 1

Overload 150%

Duty Heavy

Dynamic Braking No

Weight 2.500000

Control Type Simple vector or V/F mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
