Invertek ODE-3-140022-3F1X Optidrive E3 (Replaced by ODE-3-140022-3F1A)

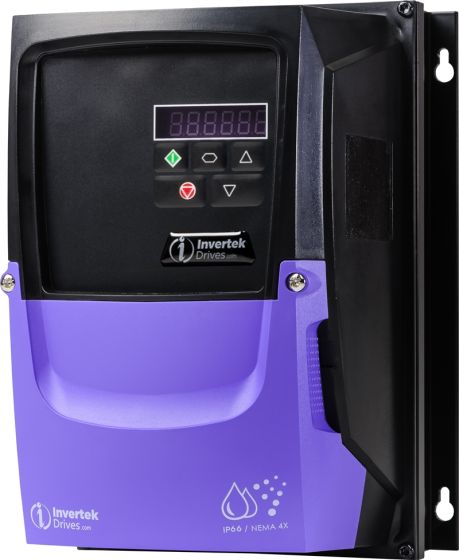

Invertek inverter drive, ODE-3-140022-3F1X, ODE-3, IP66 Non-switched, 0.75kW, 400V three phase input, 400V three phase output, 2.2A output, internal EMC filter, Optidrive E3. Replaced by ODE-3-140022-3F1A

More Information

£271.85 £226.54

Details

Invertek ODE-3-140022-3F1X, E3, 0.75kW, IP66 Non-switched, 400V three phase input, 400V three phase output inverter, 2.2A output, internal EMC filter. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-140022-3F1X drives in stock.

We are replacing the ODE-3-140022-3F1X 'Indoor rated' with the ODE-3-140022-3F1A 'Outdoor rated' inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-140022-3f4a-optidrive-e3-outdoor-use.html

Downloads

Power kW 0.75kW

Power HP 1HP

Input Voltage 415V

Output Voltage 0 to 400V

Input Phases 3

Output Phases 3

Output Current 2.2Amps

Input Current 3.5Amps

Encl Rating IP66 Non-switched

Width 161mm

Height 232mm

Depth 179mm

Frame Size 1

Overload 150%

Duty Heavy

Dynamic Braking No

Weight 3.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
