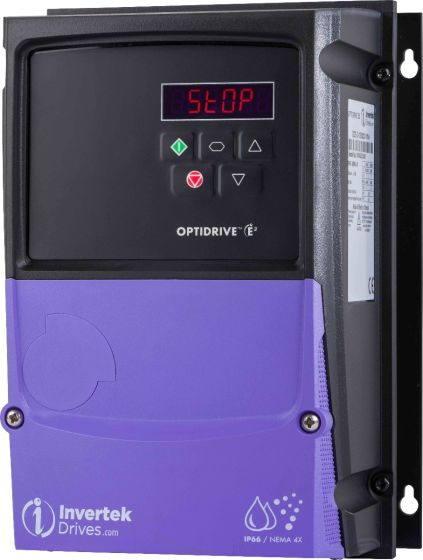

Invertek ODE-3-140041-3F1A Optidrive E3 (Outdoor use)
Invertek Optidrive E3, ODE-3-140041-3F1A, 400V three (3) phase input, 400V three (3) phase output, 1.5kW, 4.1A output, IP66 Non-switched with internal EMC filter.
£338.70
£282.25
Invertek Optidrive E3, ODE-3-140041-3F1A, 400V three (3) phase input, 400V three (3) phase output, 1.5kW, 4.1A output, IP66 Non-switched with internal EMC filter.
Ideal for wall mounting in damp and dusty environments.
Robust and easy to use. 14 parameters for basic setup.
Suitable for external mounting, subject to the required installation criteria being followed (See downloads).
-20oC to +40o C operating ambient temperature (+50oC with de-rating).
Manufacturered with UV stabilsed plastics.
Here is a link to the Invertek website: http://www.invertekdrives.com
Power kW
1.5kW
Power HP
2HP
Input Voltage
415V
Output Voltage
0 to 400V
Input Phases
3
Output Phases
3
Output Current
4.1 Amps
Input Current
5.6 Amps
Encl Rating
IP66 Non Switched
Width
161mm
Height
232mm
Depth
155mm
Frame Size
1
Overload
150%
Duty
Heavy
Dynamic Braking
No
Weight
2.500000
Control Type
Simple vector or V/F mode
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
4
Digital Outputs
1
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
1
Serial Comms
Modbus RTU & CANOpen
Approvals
UL, cUL, C- Tick, ROHS
