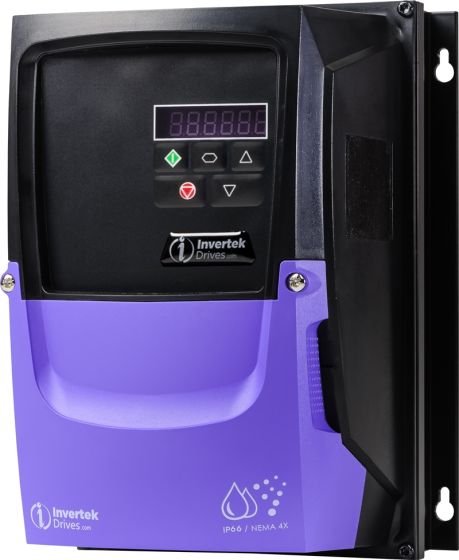

Invertek ODE-3-140041-3F1X Optidrive E3
Invertek inverter drive, ODE-3-140041-3F1X, ODE-3, IP66 Non-switched, 1.5kW, 400V three phase input, 400V three phase output, 4.1A output, internal EMC filter, Optidrive E3
£300.49
£250.41
Invertek ODE-3-140041-3F1X, E3, 1.5kW, IP66 Non-switched, 400V three phase input, 400V three phase output inverter, 4.1A output, internal EMC filter. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3
Power kW
1.5kW
Power HP
2HP
Input Voltage
415V
Output Voltage
0 to 400V
Input Phases
3
Output Phases
3
Output Current
4.1Amps
Input Current
5.6Amps
Encl Rating
IP66 Non-switched
Width
161mm
Height
232mm
Depth
179mm
Frame Size
1
Overload
150%
Duty
Heavy
Dynamic Braking
No
Weight
3.100000
Control Type
Simple vector or V/f mode
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
4
Digital Outputs
1
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
1
Serial Comms
Modbus RTU & CANOpen
Approvals
UL, cUL, C- Tick, ROHS
