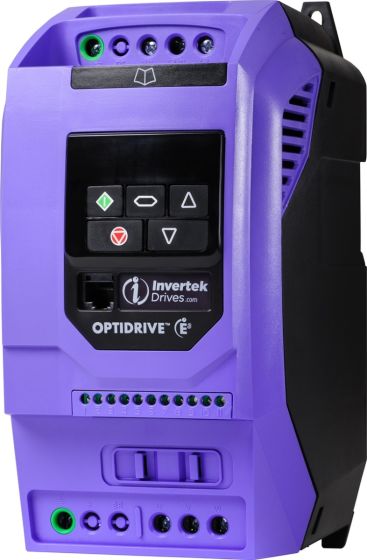

Invertek ODE-3-210058-1042 Optidrive E3

Invertek Optidrive E3, ODE-3-210058-1042, IP20, 1.1kW / 1.5HP, 110V single (1) phase input, 230V three (3) phase output, 5.8A output

More Information

£315.24 £262.70

Details

Invertek Optidrive E3, ODE-3-210058-1042, E3, IP20, 1.1kW / 1.5HP, 110V single (1) phase input, 230V three (3) phase output voltage doubler inverter, 5.8A output, panel/cabinet mount.

Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please call us for availability

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3.

For further information on the Optidrive E3, please call our experienced technical support engineers who can help with your enquiry.

NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase motor.

Downloads

Power kW 1.1kW

Power HP 1.5HP

Input Voltage 110V

Output Voltage 0 to 2 X input (230V)

Input Phases 1

Output Phases 3

Output Current 5.8Amps

Input Current 21.9Amps

Encl Rating IP20

Width 110mm

Height 221mm

Depth 150mm

Frame Size 2

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 1.700000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 50 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL. cUL, C- Tick, ROHS
