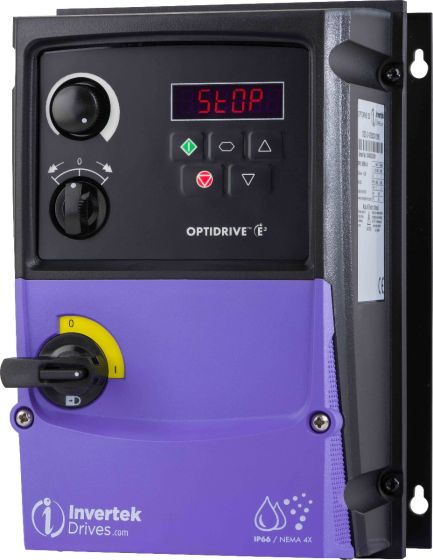

Invertek ODE-3-210058-104B Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-210058-104B, 110V single (1) phase input, 230V three (3) phase output (Voltage Doubler), 1.1kW, 5.8A output, IP66 Switched with internal braking transistor.  No internal EMC filter.

Integral mains isolator, speed potentiometer and Forward-Stop-Reverse switch.

Ideal for wall mounting in damp and dusty environments, Outdoor use (with installation criteria).

Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufactured with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please contact us for availability.
