Invertek ODE-3-220105-1F4Y Optidrive E3 (Replaced by ODE-3-220105-1F4B)

Invertek inverter drive, ODE-3-220105-1F4Y, ODE-3, IP66 Switched, 2.2kW, 230V single phase input, 230V three phase output, 10.5A output, internal EMC filter, Optidrive E3. Replaced by ODE-3-220105-1F4B

More Information

£390.40 £325.33

Details

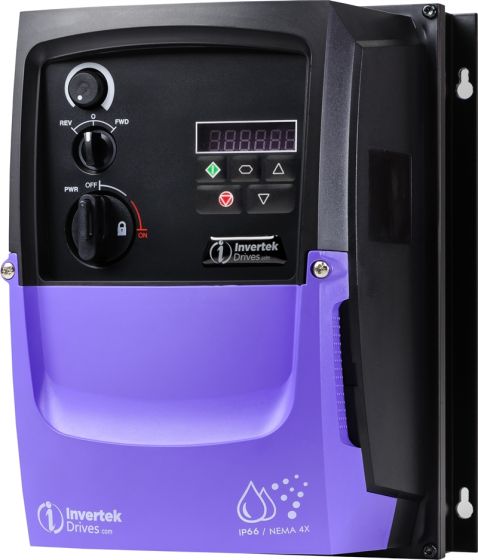

Invertek ODE-3-220105-1F4Y, E3, 2.2kW, IP66 Switched, 230V single phase input, 230V three phase output inverter, 10.5A output, internal EMC filter. On-board isolator, speed potentiometer and Forward-Stop-Reverse switch. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-220105-1F4Y drives in stock.

We are replacing the ODE-3-220105-1F4Y 'Indoor rated' with the ODE-3-220105-1F4B 'Outdoor rated' inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-220105-1f4b-optidrive-e3-outdoor-use.html

Downloads

Power kW 2.2kW

Power HP 3HP

Input Voltage 240V

Output Voltage 0 to 240V

Input Phases 1

Output Phases 3

Output Current 10.5Amps

Input Current 19.2Amps

Encl Rating IP66 Switched

Width 188mm

Height 257mm

Depth 187mm

Frame Size 2

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 4.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
