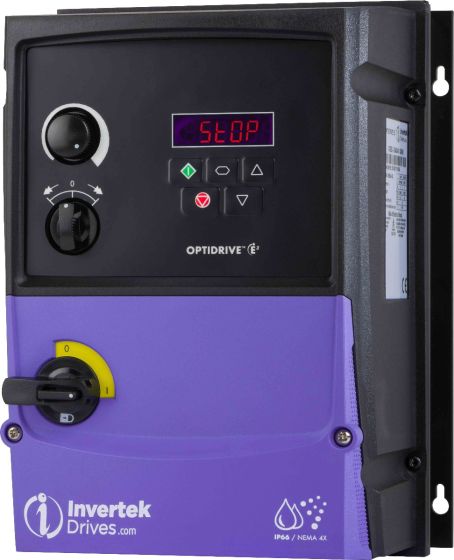

Invertek ODE-3-240058-3F4B Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-240058-3F4B, 400V three (3) phase input, 400V three (3) phase output, 2.2kW, 5.8A output, IP66 Switched with internal EMC filter and internal braking transistor.

Integral mains isolator, speed potentiometer and Forward-Stop-Reverse switch.

Ideal for wall mounting in damp and dusty environments, outdoor use (with installation criteria).

Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufactured with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com
