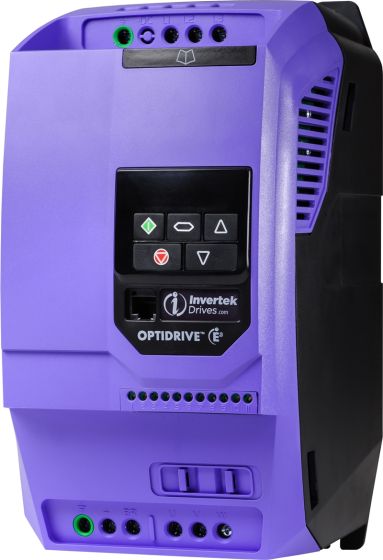

Invertek ODE-3-340180-3F42 Optidrive E3

Invertek Optidrive, ODE-3-340180-3F42, 7.5kW, 18A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter and internal braking transistor.

More Information

£527.04 £439.20

Details

Invertek Optidrive E3, ODE-3-340180-3F42, 7.5kW, 18A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter and internal braking transistor. Panel / cabinet mount.

Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3.

For further information on the Optidrive E3, please call our experienced technical support engineers who can help with your enquiry.

NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase motor.

Downloads

Power kW 7.5kW

Power HP 10HP

Input Voltage 415V

Output Voltage 0 to 400V

Input Phases 3

Output Phases 3

Output Current 18Amps

Input Current 21.2Amps

Encl Rating IP20

Width 131mm

Height 261mm

Depth 175mm

Frame Size 3

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 3.200000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 50 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
