Invertek ODE-3-340180-3F4X Optidrive E3 (Replaced by ODE-3-340180-3F4A)

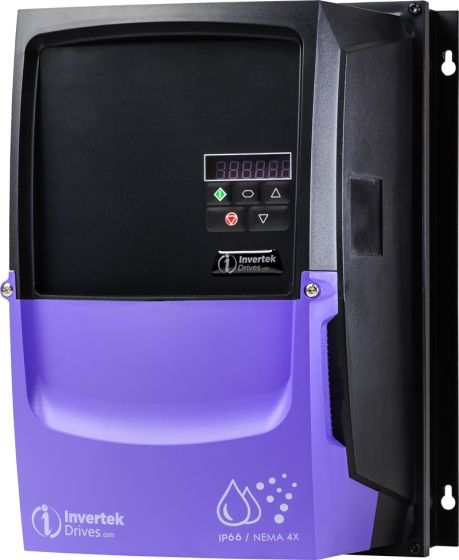

Invertek inverter drive, ODE-3-340180-3F4X, ODE-3, IP66 Non-switched, 7.5kW, 400V three phase input, 400V three phase output, 18A output, internal EMC filter, Optidrive E3. Replaced by ODE-3-340180-3F4A

More Information

£686.78 £572.32

Details

Invertek ODE-3-340180-3F4X, E3, 7.5kW, IP66 Non-switched, 400V three phase input, 400V three phase output inverter, 18A output, internal EMC filter. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-340180-3F4X drives in stock.

We are replacing the ODE-3-340180-3F4X 'Indoor rated' with the ODE-3-340180-3F4A 'Outdoor rated' inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-340180-3f4a-optidrive-e3-outdoor-use.html

Downloads

Power kW 7.5kW

Power HP 10HP

Input Voltage 415V

Output Voltage 0 to 400V

Input Phases 3

Output Phases 3

Output Current 18Amps

Input Current 21.2Amps

Encl Rating IP66 Non-switched

Width 211mm

Height 310mm

Depth 252mm

Frame Size 3

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 7.600000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
