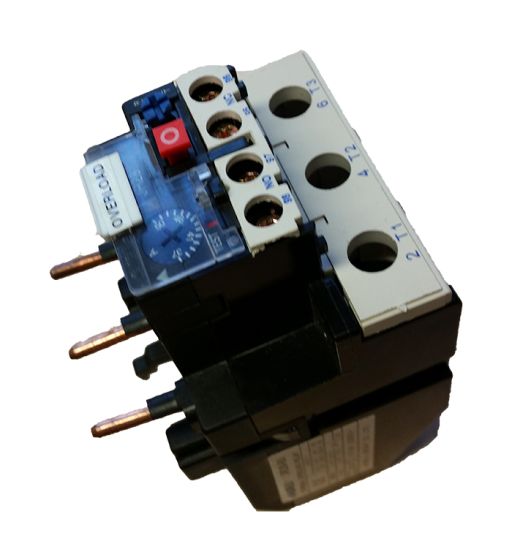

Motor Overload JR29- 150 4365 80-104A
A range of motor thermal overload covering the current range from 80 Amp to 104 Amps.
More Information
£26.70
£22.25
A motor thermal overload covering the current range from 80 Amp to 104 Amps. These have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.
Related Download 1 JR28 Thermal Overload Data
Related Download 2 JR28 Overload Dimensions
Trip Class
10
Input Voltage
415V
Output Voltage
415V
Input Phases
3
Output Phases
3
Overload
80 to 104 Amp range
Frame Size
JR28-150
Width
95mm
Height
105mm
Depth
140mm
Weight
1.000000
Approvals
CE
Model No
JR28-150 80-104
Mounting Type
Din Rail
Frame Material
Plastic
Poles
3
