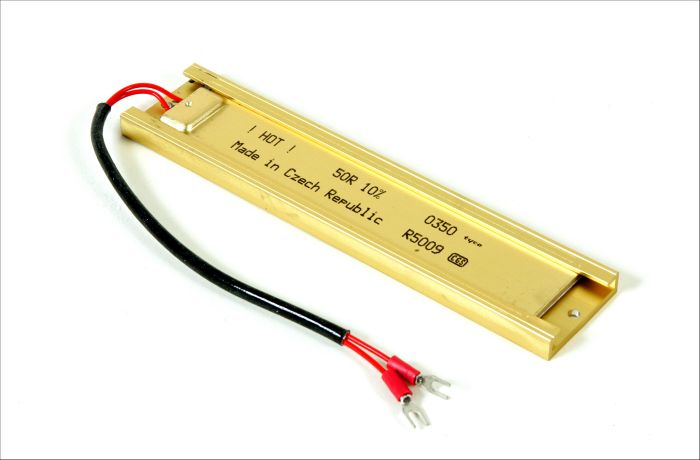

OD-BR100-IN, Invertek Dynamic Braking Resistor
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads. Invertek brake resistors are suitable for small, light duty inertia loads. The OD-BR100-IN can be mounted directly to the drives heatsink for a convenient, space saving installation method.
£94.98
£79.15
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads. Invertek brake resistors are suitable for small, light duty inertia loads. The OD-BR100-IN can be mounted directly to the drives heatsink for a convenient, space saving installation method.
Compatible with
P2, E2, E3, Elevator size 2 & 3
Model No
OD-BR100-IN
IP Rating
IP20
Weight
0.200000
Height
188mm
Width
40mm
Depth
9mm
Mounting Type
Fit in heatsink
kW Rating Peak
12kW peak
Rating Watts
200W continuous
Input Voltage
900Vdc
Resistance
100 Ohm
