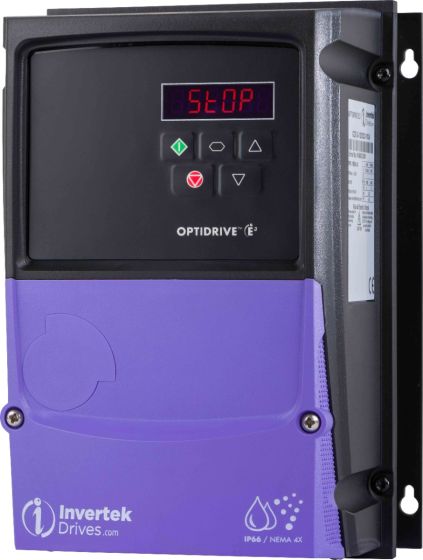

Invertek ODE-3-120043-1F1A-01 Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-120043-1F1A-01, 230V single (1) phase input, 230V single (1) phase output, 0.37kW, 0.5HP, 4.3A output, IP66 non-switched with internal EMC filter.

Ideal for wall mounting in damp and dusty environments. Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please contact us for availability.

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE:  Please check that the single phase motor is inverter rated
