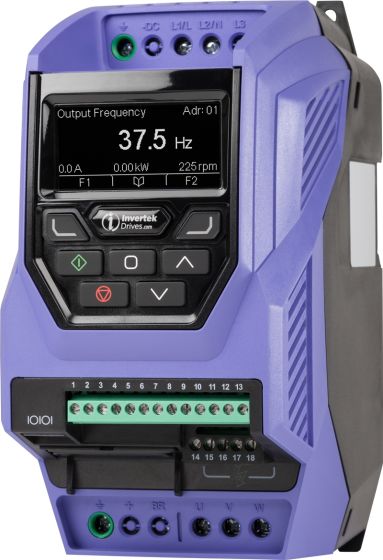

Invertek ODP-2-22075-1KF42-MN Optidrive P2
Invertek Optidrive P2, ODP-2-22075-1KF42-MN, 230V single (1) phase input, 230V (3) three phase output, 0.75kW, IP20, high performance inverter drive
£442.80
£369.00
Invertek Optidrive P2, ODP-2-22075-1KF42-MN, 230V single (1) phase input, 230V three (3) phase output, 0.75kW, IP20 inverter.
TFT Text display
DIN rail mountable.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2
Power kW
0.75
Power HP
1
Input Voltage
240V
Output Voltage
0 to input V
Input Phases
1
Output Phases
3
Output Current
4.3Amps
Input Current
8.5Amps
Encl Rating
IP20
Width
112mm
Height
209mm
Depth
185mm
Frame Size
2
Overload
200%
Duty
Heavy
Dynamic Braking
Yes
Weight
1.800000
Control Type
V/f and Open loop vector
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
50 deg C
Digital Inputs
3
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2 status relays
Serial Comms
Modbus, CANopen
Approvals
UL. cUL, C- Tick, Gost R, ROHS
