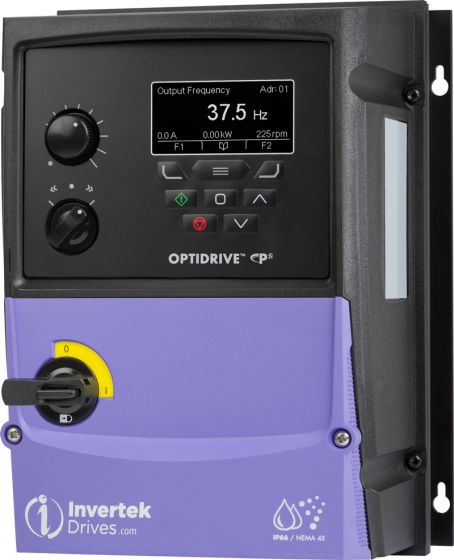

Optidrive P2 ODP-2-24075-3KF4B-MN (Outdoor Rated)

Invertek Optidrive P2, ODP-2-24075-3KF4B-MN, 400V 3 phase input, 400V 3 phase output, 0.75kW, 2.2A, IP66 Switched outdoor rated, high performance inverter drive

More Information

£710.10 £591.75

Details

Invertek Optidrive P2, ODP-2-24075-3KF4B-MN, 400V 3 phase input, 400V 3 phase output, 0.75kW, 2.2A, IP66 Switched outdoor rated inverter.

Integral speed potentiometer, Forward-Stop-Reverse switch and input mains isolator.

TFT text display.

High performance open loop vector or V/f control.

Internal EMC filter and brake transistor.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2

Please contact us for availability

Downloads

Power kW 0.75

Power HP 1

Input Voltage 415V

Output Voltage 0 to input V

Input Phases 3

Output Phases 3

Output Current 2.2Amps

Input Current 3.5Amps

Encl Rating IP66

Width 188mm

Height 257mm

Depth 237mm

Frame Size 2

Overload 200%

Duty Heavy

Dynamic Braking Yes

Weight 4.800000

Control Type Open loop vector

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 5

Digital Outputs 2

Analogue I/Ps 2

Analogue O/Ps 2

Output relay(s) 2 status relays

Serial Comms Modbus, CANopen

Approvals UL. cUL, C- Tick, ROHS
