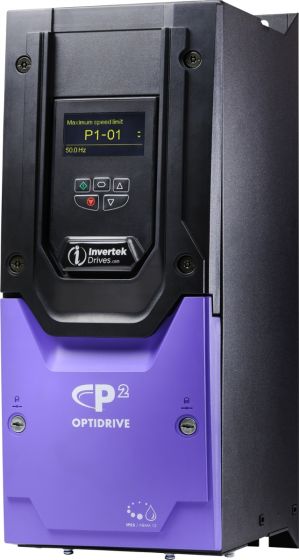

Invertek ODP-2-44185-3KF4N-TN/MN Optidrive P2
Invertek Optidrive P2, ODP-2-44185-3KF4N-TN/MN, 400V 3 phase input, 400V 3 phase output, 18.5kW, IP55 Non-switched, high performance inverter drive
£1,989.90
£1,658.25
Invertek Optidrive P2, ODP-2-44185-3KF4N-TN/MN, 400V 3 phase input, 400V 3 phase output, 18.5kW, IP55 Non-switched inverter.
TFT or OLED text display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
IP55 is protection against low pressure jets of water and harmful deposits of dust.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2
Power kW
18.5
Power HP
25
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
39Amps
Input Current
47Amps
Encl Rating
IP55
Width
173mm
Height
440mm
Depth
230mm
Frame Size
4
Overload
200%
Duty
Heavy
Dynamic Braking
Yes
Weight
11.500000
Control Type
Open loop vector or V/f
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
5
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2 status relays
Serial Comms
Modbus, CANopen
Approvals
UL. cUL, C- Tick, ROHS
