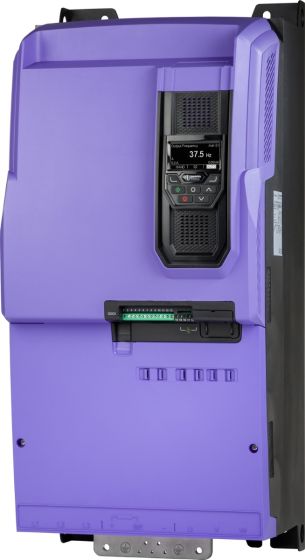

Invertek ODP-2-64110-3KF42-MN Optidrive P2
Invertek Optidrive P2, ODP-2-64110-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 110kW, IP20, high performance inverter drive
£5,983.20
£4,986.00
Invertek Optidrive P2, ODP-2-64110-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 110kW, IP20 inverter.
TFT text display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Please call us for availability of this product.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2
Power kW
110
Power HP
150
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
202Amps
Input Current
189.8Amps
Encl Rating
IP20
Width
330mm
Height
726mm
Depth
320mm
Frame Size
6B
Overload
200%
Duty
Heavy
Dynamic Braking
Yes
Weight
43.000000
Control Type
V/f and Open loop vector
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
50 deg C
Digital Inputs
3
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2 status relays
Serial Comms
Modbus, CANopen
Approvals
UL. cUL, C- Tick, Gost R, ROHS
