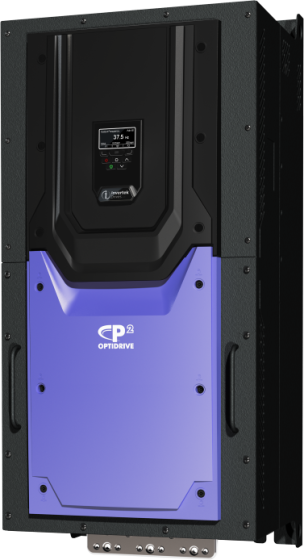

Invertek ODP-2-84200-3KR42-MN Optidrive P2
Invertek Optidrive P2, ODP-2-84200-3KR42-MN, 400V 3 phase input, 400V 3 phase output, 200kW, 370 Amps, IP20 panel mount, high performance inverter drive
£10,982.40
£9,152.00
Invertek Optidrive P2, ODP-2-84200-3KR42-MN, 400V 3 phase input, 400V 3 phase output, 200kW, 370A, IP20 panel mount inverter.
C2 High performance internal EMC filter
TFT text display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2
Please call us for availability
Power kW
200
Power HP
265
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
370Amps
Input Current
370Amps
Encl Rating
IP20
Width
444mm
Height
974mm
Depth
423mm
Frame Size
8
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
124.500000
Control Type
Open loop vector or V/f
Input Freq
48-62Hz
Output Freq
0-120Hz
Max Temp
50 deg C
Digital Inputs
5
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2 status relays
Serial Comms
Modbus, CANopen
Approvals
UL. cUL, C- Tick, ROHS
