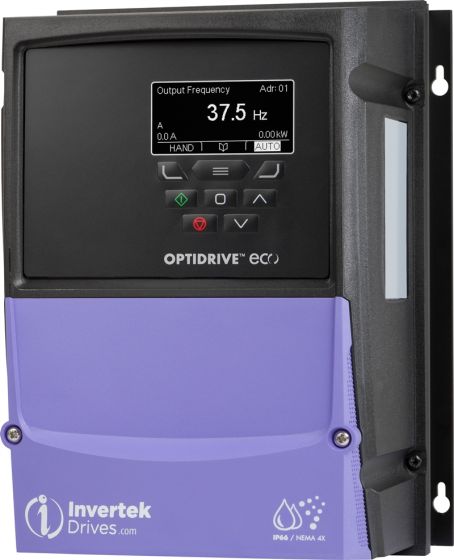

Optidrive ECO ODV-3-240140-3F1A-MN (Outdoor Rated)

Invertek Optidrive ECO, ODV-3-240140-3F1A-MN 400V 3 phase input, 400V 3 phase output, 14A, 5.5kW, IP66 Non-switched outdoor rated.

Dedicated centrifugal Fan & Pump inverter drive.

Quadratic voltage / frequency output for energy optimisation.

Internal PID feedback loop for flow / level / temperature control.

TFT text display with HAND and AUTO buttons on keypad.

On-board RFI filter.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

15kW Optidrive ECO Energy Saving Demonstration Video

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO
