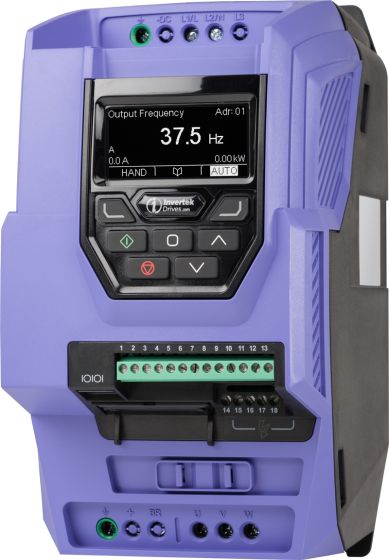

Optidrive ECO ODV-3-340240-3F12-MN
Invertek Optidrive ECO, ODV-3-340240-3F12-MN, 400V 3 phase input, 400V 3 phase output, 11kW, IP20, dedicated Fan & Pump inverter drive
£945.00
£787.50
Invertek Optidrive ECO, ODV-3-340240-3F12-MN, 400V 3 phase input, 400V 3 phase output, 11kW, IP20, dedicated centrifugal Fan & Pump inverter drive.
TFT Text Display.
Quadratic voltage / frequency output for maximum motor energy optimisation.
Internal PID feedback loop for pressure / flow / level / temperature control.
Internal EMC filter.
Here is a link to the Invertek website: http://www.invertekdrives.com
15kW Optidrive ECO Energy Saving Demonstration Video
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO
Power kW
11
Power HP
15
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
24Amps
Input Current
21.6Amps
Encl Rating
IP20
Width
131mm
Height
261mm
Depth
205mm
Frame Size
3
Overload
110%
Duty
Normal
Dynamic Braking
No
Weight
3.500000
Control Type
ECO Vector
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
5
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2
Serial Comms
Modbus, Bacnet
Approvals
UL. cUL, C- Tick, Gost R, ROHS
