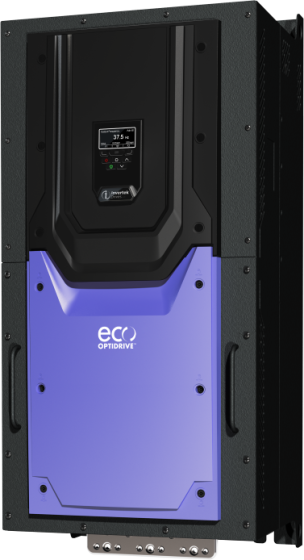

Invertek ODV-3-844800-3R12-MN Optidrive Eco
Invertek Optidrive Eco, ODV-3-844800-3R12-MN, 400V 3 phase input, 400V 3 phase output, 250kW, 480A, IP20 panel mount, centrifugal fan/pump inverter drive
£10,504.80
£8,754.00
Invertek Optidrive Eco, ODV-3-844800-3R12-MN, 400V 3 phase input, 400V 3 phase output, 250kW, 480A, IP20 panel mount, centrifugal fan/pump inverter drive
C2 High performance internal EMC filter
TFT text display
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive Eco
Please call us for availability
Power kW
250
Power HP
33
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
480Amps
Input Current
480Amps
Encl Rating
IP20
Width
444mm
Height
974mm
Depth
423mm
Frame Size
8
Overload
110%
Duty
Light
Dynamic Braking
Yes
Weight
124.500000
Control Type
Open loop vector
Input Freq
48-62Hz
Output Freq
0-120Hz
Max Temp
50 deg C
Digital Inputs
5
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2 status relays
Serial Comms
Modbus, BACNet MSTP
Approvals
UL. cUL, C- Tick, ROHS
