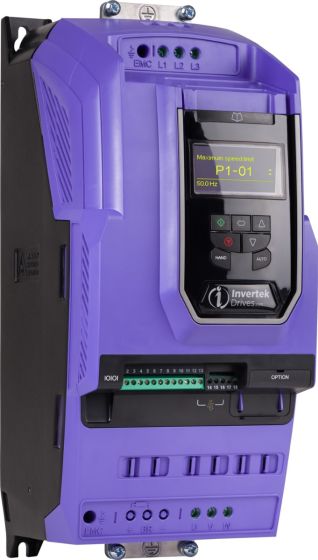

Optidrive ECO ODV-3-440300-3F12-TN/MN
Invertek Optidrive ECO, ODV-3-440300-3F12-TN/MN, 400V 3 phase input, 400V 3 phase output, 15kW, IP20, dedicated Fan & Pump inverter drive
£1,444.50
£1,203.75
Invertek Optidrive ECO, ODV-3-440300-3F12-TN/MN, 400V 3 phase input, 400V 3 phase output, 15kW, IP20, dedicated centrifugal Fan & Pump inverter drive.
TFT or OLED text display.
Quadratic voltage / frequency output for maximum motor energy optimisation.
Internal PID feedback loop for pressure / flow / level / temperature control.
Internal EMC filter.
Here is a link to the Invertek website: http://www.invertekdrives.com
15kW Optidrive ECO Energy Saving Demonstration Video
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO
Power kW
15
Power HP
20
Input Voltage
415V
Output Voltage
0 to input V
Input Phases
3
Output Phases
3
Output Current
30Amps
Input Current
27Amps
Encl Rating
IP20
Width
160mm
Height
418mm
Depth
240mm
Frame Size
4
Overload
110%
Duty
Normal
Dynamic Braking
No
Weight
9.200000
Control Type
ECO Vector
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
5
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
2
Output relay(s)
2
Serial Comms
Modbus, Bacnet
Approvals
UL. cUL, C- Tick, Gost R, ROHS
