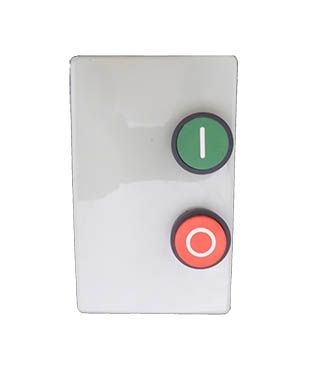

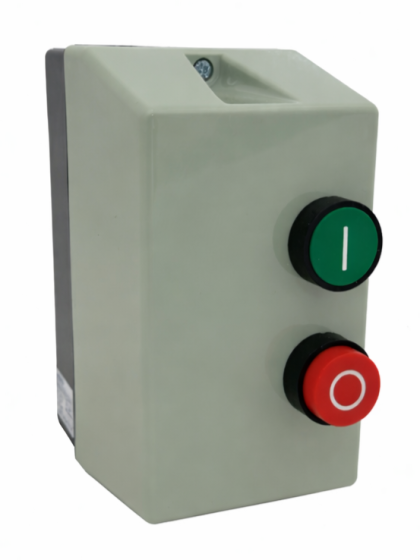

QCX2-4.0 to 6.0A DOL Starter
Model Number
DOL22EN400V
The QCX2-4.0 to 6.0A model covers the motor current range of 4.0 to 6.0Amp. 2.2kW
£47.53
£39.61
The QCX2 range of enclosed direct on line motor starters comes in an IP42 hard plastic, double insulated package. Complete with motor thermal overload, stop and start buttons. Compact, reliable motor starting from Motor Control Warehouse. The QCX2-4.0 to 6.0A model covers the motor current range of 4.0 to 6.0Amp.
Model Number
DOL22EN400V
Power kW
2.2kW
Input Phases
3
Output Phases
3
Trip Class
10
Input Voltage
400Vac
Coil Voltage
400Vac
Encl Rating
IP42
Overload
4.0Amp to 6.0Amp
Material
Hard plastic
Motor Current
4.0Amp to 6.0Amp
Depth
140mm
Length
150mm
Width
88mm
Approvals
CE
Weight
0.900000
