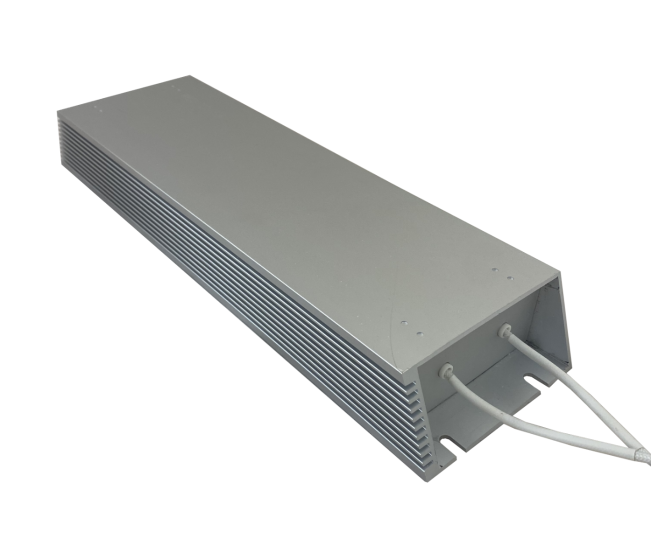

RXLG/1000/50 Dynamic Braking Resistor

Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.

The RXLG/1000/50 Dynamic Braking Resistor can be mounted on to the cubicle backplate for good heat dissipation.

More Information
£109.80 £91.50

Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.

The RXLG/1000/50 Dynamic Braking Resistor should be mounted vertically on to the cubicle backplate for good heat dissipation.

The resistor goes highly resistive under overload.

Compatible with Various
Model No RXLG/1000/50
IP Rating IP20
Weight 3.200000
Height 370mm
Width 107mm
Depth 52mm
Mounting Type Mounts on to backplate
kW Rating Peak ---
Rating Watts 1000W
Input Voltage 900Vdc
Resistance 50 Ohm
