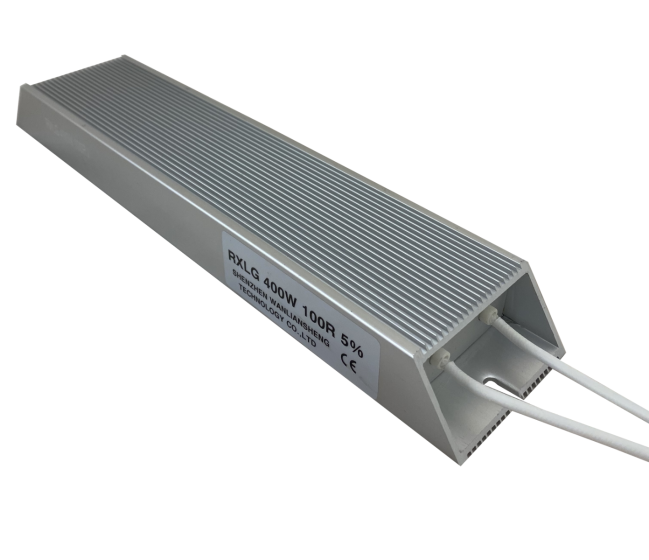

RXLG/400/100 Dynamic Braking Resistor
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/400/100 Dynamic Braking Resistor can be mounted on to the cubicle backplate for good heat dissipation.
£94.20
£78.50
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/400/100 Dynamic Braking Resistor should be mounted vertically on to the cubicle backplate for good heat dissipation.
The resistor goes highly resistive under overload.
Compatible with
Various
Model No
RXLG/400/100
IP Rating
IP20
Weight
1.000000
Height
290mm
Width
58mm
Depth
30mm
Mounting Type
Mounts on to backplate
kW Rating Peak
---
Rating Watts
400W
Input Voltage
900Vdc
Resistance
100 Ohm
