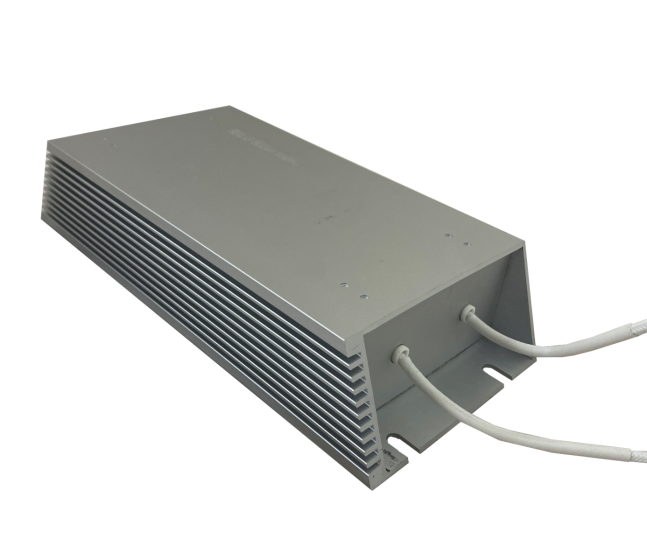

RXLG/600/100 Dynamic Braking Resistor
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/600/100 Dynamic Braking Resistor can be mounted on to the cubicle backplate for good heat dissipation.
£102.60
£85.50
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/600/100 Dynamic Braking Resistor should be mounted vertically on to the cubicle backplate for good heat dissipation.
The resistor goes highly resistive under overload.
Compatible with
Various
Model No
RXLG/600/10
IP Rating
IP20
Weight
2.000000
Height
232mm
Width
107mm
Depth
50mm
Mounting Type
Mounts on to backplate
kW Rating Peak
---
Rating Watts
600W
Input Voltage
900Vdc
Resistance
100 Ohm
