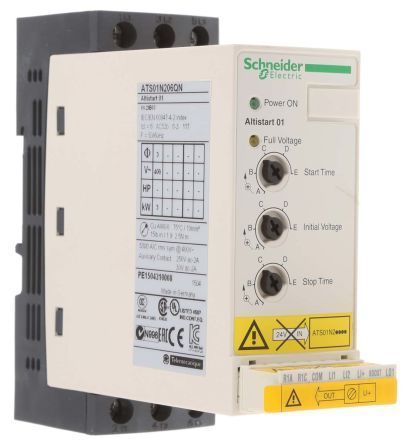

Schneider ATS01N212QN- 5.5kW Digital Soft Starter

The Altistart 01 soft starter operates either as a torque limiter on starting, or as a soft start/soft stop unit for asynchronous motors. Using the Altistart 01 starter enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner. It helps to prevent mechanical shocks, which cause wear and tear, and subsequent maintenance work and production downtime.

Altistart 01 soft start/soft stop units (ATS01N2ppp) are equipped with:

• A potentiometer 6 for setting the starting time
• A potentiometer 8 for setting the deceleration time
• A potentiometer 7 for adjusting the starting voltage threshold according to the motor load
• 1 green LED 4 to indicate that the unit is powered up
• 1 yellow LED 5 to indicate that the motor is powered at nominal voltage, if it is connected to the starter
• Connector 9 for: - 2 logic inputs for Run/Stop commands - 1 logic input for the BOOST function - 1 logic output to indicate the end of starting - 1 relay output to indicate the motor has reached a standstill at the end of the deceleration stage

Power Dissipation - 64 Watts (transient state)
Power Dissipation - 4 Watts (at end of starting and at full load)

Number of phases controlled - 2

Rated at -10C to  40C Ambient. - Please check stock level prior to ordering.
