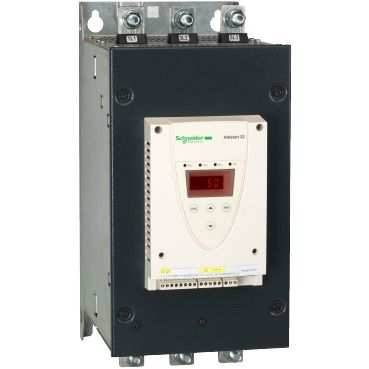

Schneider ATS22C21Q - 110kW Digital Soft Starter
Schneider Altistart ATS - Please check stock prior to ordering
£2,316.30
£1,930.25
Schneider Altistart ATS - Please check stock prior to ordering
The ATS is a simple to use, three phase digital softstart with embedded bypass function for a wide range of applications.Complete with adjustable electronic overload and fieldbus communications.
Compact size
Simple connection
Easy to commission
Built-in bypass
3 programmable logic inputs
1 PTC input
2 relay outputs
Motor thermal protection
Overvoltage protection
Designed for pumps and fans
Control circuit voltage - 230Vac 50/60Hz
Start with torque control (current limited to 3.5 In)
Input Voltage
230 - 440V
Output Voltage
0 to input
Input Phases
3
Output Phases
3
Power kW
110
Encl Rating
IP00
Output Current
210Amp
Width
206mm
Height
425mm
Depth
299mm
Weight
21.000000
Frame Size
D
Input Freq
50-60Hz
Output Freq
50-60Hz
Max Temp
40 deg C
Digital Inputs
3
Digital Outputs
0
Analogue I/Ps
1 PTC
Analogue O/Ps
0
Output relay(s)
2
Model No
ATS22C21Q
Approvals
CE, C-Tick, GOST, CSA, UL, CCC
