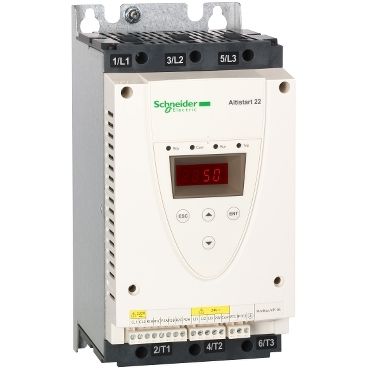

Schneider ATS22D32Q - 15kW Digital Soft Starter
Schneider Altistart ATS - Please check stock prior to ordering
£659.28
£549.40
Schneider Altistart ATS - Please check stock prior to ordering
The ATS is a simple to use, three phase digital softstart with embedded bypass function for a wide range of applications.Complete with adjustable electronic overload and fieldbus communications.
Compact size
Simple connection
Easy to commission
Built-in bypass
3 programmable logic inputs
1 PTC input
2 relay outputs
Motor thermal protection
Overvoltage protection
Designed for pumps and fans
Control circuit voltage - 230Vac 50/60Hz
Start with torque control (current limited to 3.5 In)
Input Voltage
230 - 440V
Output Voltage
0 to input
Input Phases
3
Output Phases
3
Power kW
15
Encl Rating
IP20
Output Current
32Amp
Width
130mm
Height
209mm
Depth
265mm
Weight
5.500000
Frame Size
A
Input Freq
50-60Hz
Output Freq
50-60Hz
Max Temp
40 deg C
Digital Inputs
3
Digital Outputs
0
Analogue I/Ps
1 PTC
Analogue O/Ps
0
Output relay(s)
2
Model No
ATS22D32Q
Approvals
