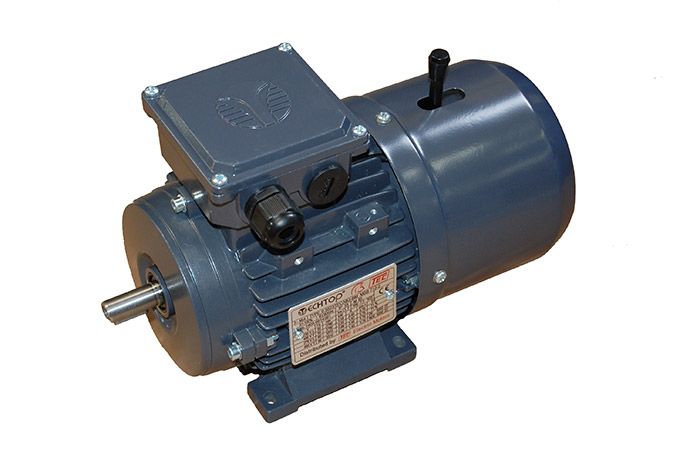

T2AB, 3 Phase, 0.25kW, 2 pole, IE2 High Efficiency Brake Motor
T2AB, 3 Phase, 0.25kW, 2 pole, 63 Frame, IE2 High Efficiency Brake Motor
£224.76
£187.30
T2AB, Aluminium Frame, 3 Phase, 0.25kW, 2 pole, 63 Frame, IE2 High Efficiency Brake Motor
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 3Nm. (The brake torque figures are factory set and cannot be adjusted).
Power kW
0.25
Power HP
0.3
Input Phases
3
Poles
2
Slip Speed
2710rpm
Frame Size
63
Model No
T2AB-632-2
Frame Material
Aluminium
Shaft Diameter
11mm
Current 200V
1.23Amps
Current 400V
0.71Amps
Weight
6.500000
Width
130mm
Depth
258mm
Height
171mm
Input Volts Delta
200V
Input Volts Star
400V
Encl Rating
IP44
Efficiency
IE2
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
