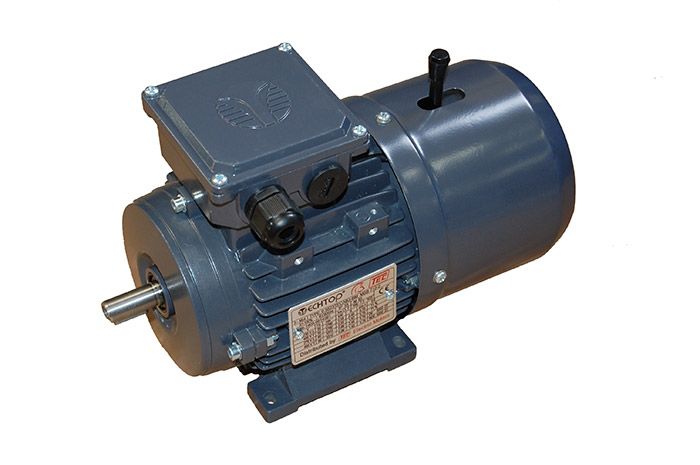

T2AB, 3 Phase, 0.37kW, 2 pole, IE2 High Efficiency Brake Motor

T2AB, 3 Phase, 0.37kW, 2 pole, 71 Frame, IE2 High Efficiency Brake Motor

More Information
£290.46 £242.05

T2AB, Aluminium Frame, 3 Phase, 0.37kW, 2 pole, 71 Frame, IE2 High Efficiency Brake Motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box



Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.

Brake torque 3Nm. (The brake torque figures are factory set and cannot be adjusted).







Power kW 0.37
Power HP 0.5
Input Phases 3
Poles 2
Slip Speed 2730rpm
Frame Size 71
Model No T2AB-711-2
Frame Material Aluminium
Shaft Diameter 14mm
Current 200V 1.67Amps
Current 400V 0.97Amps
Weight 7.000000
Width 147mm
Depth 282mm
Height 186mm
Input Volts Delta 200V
Input Volts Star 400V
Encl Rating IP44
Efficiency IE2
Duty S1
Mounting Type B3
Input Freq 50 / 60Hz
Max Temp 40 Deg C
Inverter Rated Yes
Approvals CE
