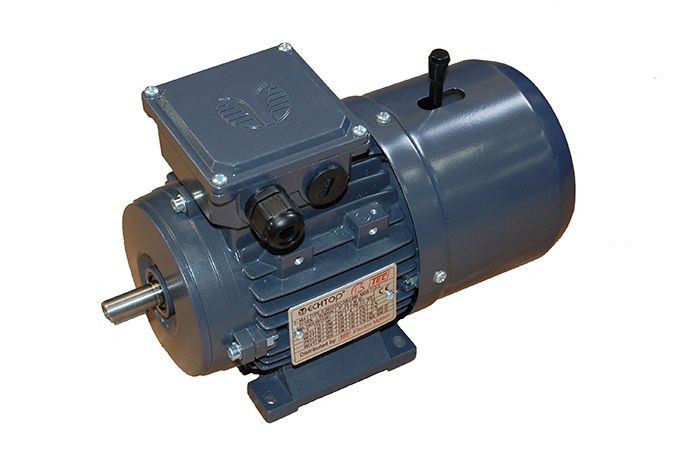

T2AB, 3 Phase, 0.37kW, 4 pole, IE2 High Efficiency Brake Motor
T2AB, 3 Phase, 0.37kW, 4 pole, 71 Frame, IE2 High Efficiency Brake Motor
£283.44
£236.20
T2AB, Aluminium Frame, 3 Phase, 0.37kW, 4 pole, 71 Frame, IE2 High Efficiency Brake Motor
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 5Nm. (The brake torque figures are factory set and cannot be adjusted).
Power kW
0.37
Power HP
0.5
Input Phases
3
Poles
4
Slip Speed
1370rpm
Frame Size
71
Model No
T2AB-712-4
Frame Material
Aluminium
Shaft Diameter
14mm
Current 200V
1.92Amps
Current 400V
1.11Amps
Weight
8.000000
Width
147mm
Depth
282mm
Height
186mm
Input Volts Delta
200V
Input Volts Star
400V
Encl Rating
IP44
Efficiency
IE2
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
