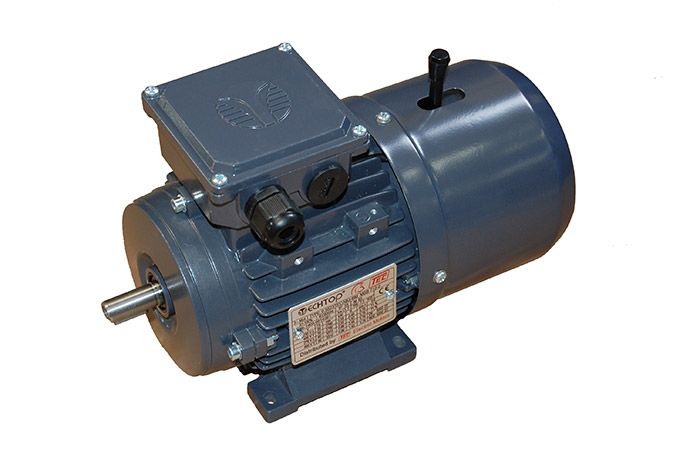

T3AB, 3 Phase, 2.2kW, 2 pole, IE3 Premium Efficiency Brake Motor

T3AB, Aluminium Frame, 3 Phase, 2.2kW, 2 pole, 90L1 Frame, IE3 Premium Efficiency Brake Motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.

Brake torque 14Nm. (The brake torque figures are factory set and cannot be adjusted).
