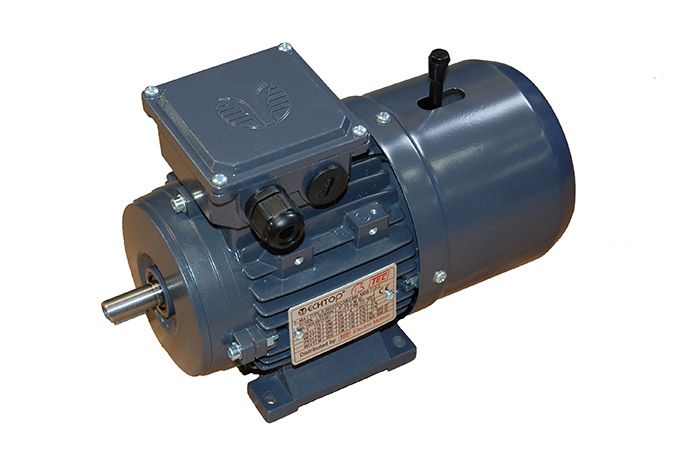

T3AB, 3 Phase, 5.5kW, 2 pole, IE3 Premium Efficiency Brake Motor
T3AB, 3 Phase, 5.5kW, 2 pole, 132S1 Frame, IE3 Premium Efficiency Brake Motor
£1,217.82
£1,014.85
T3AB, Aluminium Frame, 3 Phase, 5.5kW, 2 pole, 132S1 Frame, IE3 Premium Efficiency Brake Motor
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
AC to DC rectifier mounted in motor terminal box, brake fed from a two phase 400Vac supply.
Brake torque 60Nm. (The brake torque figures are factory set and cannot be adjusted).
Power kW
5.5
Power HP
7.5
Input Phases
3
Poles
2
Slip Speed
2900rpm
Frame Size
132S
Model No
T3AB-132S1-2
Frame Material
Aluminium
Shaft Diameter
38mm
Current 200V
N/A
Current 400V
10.53Amps
Weight
50.000000
Width
265mm
Depth
497mm
Height
318mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP44
Efficiency
IE3
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
