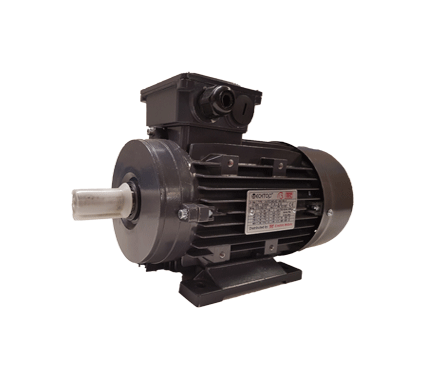

T3C, 3 Phase, 90kW, 8 pole, IE3 Premium Efficiency Motor
T3C, Cast Iron frame, 3 phase, 90kW, 8 pole motor, 315L1 frame, IE3 motor
£9,937.44
£8,281.20
T3C, Cast Iron frame, 3 phase, 90kW, 8 pole motor, 315L1 frame, IE3 motor
B3 foot mount as standard
Select B35 foot & flange mount from the drop down box
NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.
Power kW
90
Power HP
120
Input Phases
3
Poles
8
Slip Speed
740rpm
Frame Size
315L1
Model No
T3C-315L1-8
Frame Material
Cast Iron
Shaft Diameter
80mm
Current 200V
N/A
Current 400V
168.9Amps
Weight
1100.000000
Width
680mm
Depth
1385mm
Height
825mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP55
Efficiency
IE3
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
