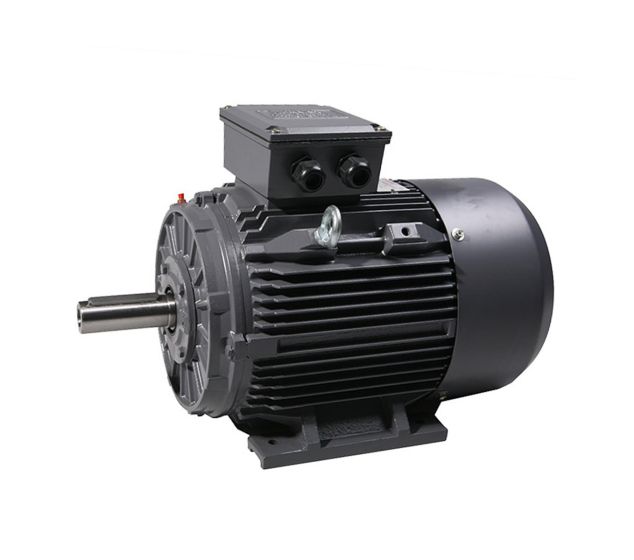

T4C, 3 Phase, 132kW, 2 pole, IE4 Super Premium Efficiency Motor
T4C, cast iron frame, 3 phase, 132kW, 2 pole motor, 315M frame, IE4 motor
£8,000.82
£6,667.35
T4C, cast iron frame, 3 phase, 132kW, 2 pole motor, 315M frame, IE4 motor with 65mm diameter output shaft
B3 foot mount as standard
Select B35 foot & flange mount from the drop down box
NOTE: The length of the newer IE4 motor may be longer than the older IE1/IE2/IE3 motor. Please check that you have no size constraints.
Power kW
132
Power HP
180
Input Phases
3
Poles
2
Slip Speed
2980rpm
Frame Size
315M
Model No
T4C-315M-2
Frame Material
Cast Iron
Shaft Diameter
65mm
Current 200V
N/A
Current 400V
222.5Amps
Weight
1017.000000
Width
680mm
Depth
1355mm
Height
825mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP55
Efficiency
IE4
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
