TEC Gearmotor with brake, 3 phase, 0.18kW at 10 to 1
T2AB, 3 Phase, 0.18kW, 4 pole, 63 Frame, IE2, brake gearmotor at 10 to 1 ratio
£316.02
£263.35

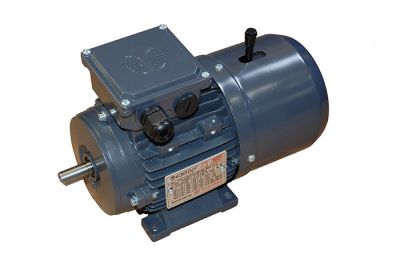

T2AB, Aluminium Frame, 3 Phase, 0.18kW, 4 pole, 63 Frame, IE2 High Efficiency Brake Motor coupled to a TCNDK30 at 10 to 1 ratio
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 3Nm. (The brake torque figures are factory set and cannot be adjusted).
FCNDK Gearbox Mounting Positions (376.18 kB)
Power kW
0.18kW
Input Voltage
400/230V
Input Phases
3 phase
Poles
4
Frame Size
63/30
Encl Rating
IP55
Weight
5.400000
Duty
S1
Output Speed
140rpm
Ratio
10 to 1
Approvals
CE
Model No
TECWGBM0.18-10
Mounting Type
B3/B14/B5
Input Volts Star
400V
Input Volts Delta
230V
Frame Material
Aluminium
Output Bore Dia
14mm
Output Torque
9.87Nm
Service Factor
1.72
Efficiency
IE2 Motor
Max Temp
40 DegC
Current 200V
1.2 Amps
Current 400V
0.7 Amps
Slip Speed
1310rpm
Inverter Rated
Yes
