TEC Gearmotor with brake, 3 phase, 1.1kW at 60 to 1
T3AB, 3 Phase, 1.1kW, 4 pole, 90S Frame, IE3, brake gearmotor at 60 to 1 ratio
£832.98
£694.15

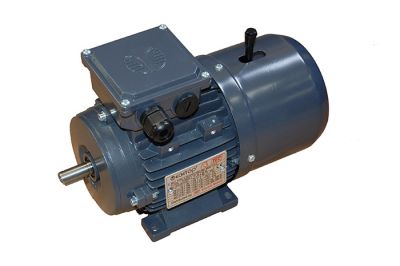

T3AB, Aluminium Frame, 3 Phase, 1.1kW, 4 pole, 90S Frame, IE3 Premium Efficiency Brake Motor coupled to a TCNDK90 at 60 to 1 ratio
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 16Nm. (The brake torque figures are factory set and cannot be adjusted).
FCNDK Gearbox Mounting Positions (376.18 kB)
Power kW
1.1kW
Input Voltage
400/230V
Input Phases
3 phase
Poles
4
Frame Size
90/90
Encl Rating
IP55
Weight
32.300000
Duty
S1
Output Speed
23.3rpm
Ratio
60 to 1
Approvals
CE
Model No
TECWGBM1.1-60
Mounting Type
B3/B14/B5
Input Volts Star
400V
Input Volts Delta
230V
Frame Material
Aluminium
Output Bore Dia
35mm
Output Torque
279Nm
Service Factor
1.00
Efficiency
IE3 Motor
Max Temp
40 DegC
Current 200V
4.57Amps
Current 400V
2.64Amps
Slip Speed
1400rpm
Inverter Rated
Yes
